Unity)코드분석) Red Runner

Red Runner 코드 분석

※모든 저작권은 해당 주소의 Open Source 입니다.

Github 주소 : [링크]

BayatGames/RedRunner

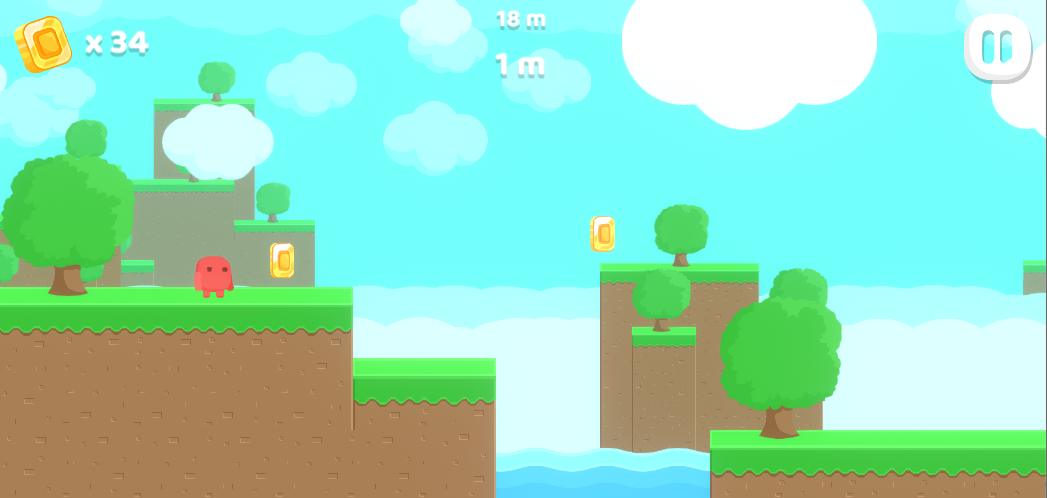

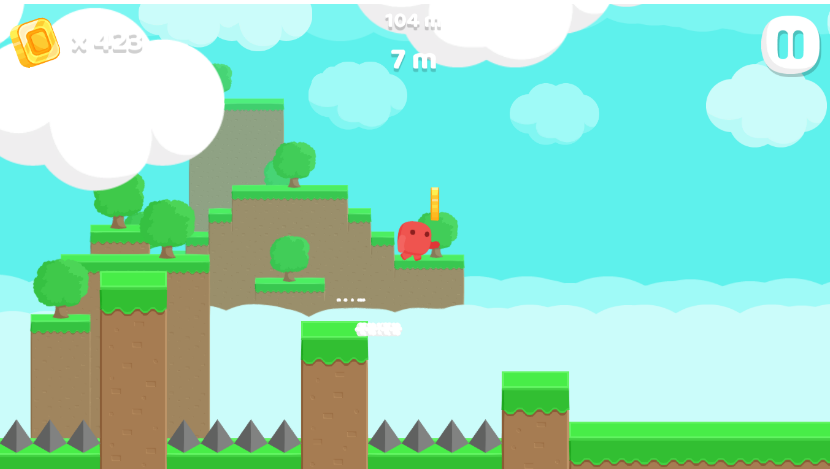

간단한 러닝 게임인 Red Runner라는 OpenSource를 보고 코드 분석을 하려고 한다.

간단하게 맵을 생성하고 캐릭터를 움직이면서 코인을 먹고 최고로 길게 (m) 가는 것을 목표로 하는 게임이다.

Unity 기반 프로젝트이다. 중간중간에 트리거 이벤트와 각종 장애물 및 함정이 있고 지형이 아닌 곳으로 착지하게 되면 추락하게 된다.

<CameraController>

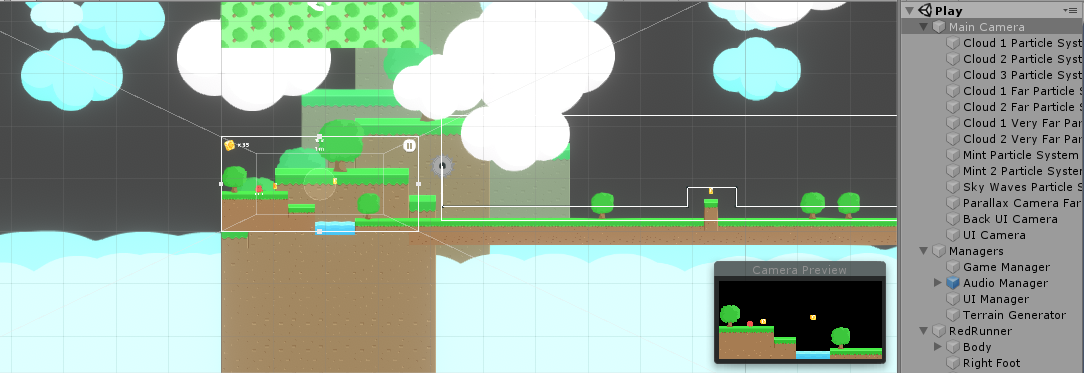

메인 카메라는 캐릭터를 기준으로 움직인다.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace RedRunner.Utilities
{

	public class CameraController : MonoBehaviour
	{

		public delegate void ParallaxCameraDelegate ( Vector3 deltaMovement );

		public ParallaxCameraDelegate onCameraTranslate;

		private static CameraController m_Singleton;

		public static CameraController Singleton
		{
			get
			{
				return m_Singleton;
			}
		}

		[SerializeField]
		private Camera m_Camera;
		[SerializeField]
		private Transform m_Followee;
		[SerializeField]
		private float m_MinY = 0f;
		[SerializeField]
		private float m_MinX = 0f;
		[SerializeField]
		private CameraControl m_ShakeControl;
		[SerializeField]
		private float m_FastMoveSpeed = 10f;
		[SerializeField]
		private float m_Speed = 1f;
		private bool m_FastMove = false;
		private Vector3 m_OldPosition;

		public bool fastMove
		{
			get
			{
				return m_FastMove;
			}
			set
			{
				m_FastMove = value;
			}
		}

		void Awake ()
		{
			m_Singleton = this;
			m_ShakeControl = GetComponent<CameraControl> ();
		}

		void Start ()
		{
			m_OldPosition = transform.position;
		}

		void Update ()
		{
//			if (!m_ShakeControl.IsShaking) {
			Follow ();
//			}
			if ( transform.position != m_OldPosition )
			{
				if ( onCameraTranslate != null )
				{
					Vector3 delta = m_OldPosition - transform.position;
					onCameraTranslate ( delta );
				}
				m_OldPosition = transform.position;
			}
		}

		public void Follow ()
		{
			float speed = m_Speed;
			if ( m_FastMove )
			{
				speed = m_FastMoveSpeed;
			}
			Vector3 cameraPosition = transform.position;
			Vector3 targetPosition = m_Followee.position;
			if ( targetPosition.x - m_Camera.orthographicSize * m_Camera.aspect > m_MinX )
			{
				cameraPosition.x = targetPosition.x;
			}
			else
			{
				cameraPosition.x = m_MinX + m_Camera.orthographicSize * m_Camera.aspect;
			}
			if ( targetPosition.y - m_Camera.orthographicSize > m_MinY )
			{
				cameraPosition.y = targetPosition.y;
			}
			else
			{
				cameraPosition.y = m_MinY + m_Camera.orthographicSize;
			}
			transform.position = Vector3.MoveTowards ( transform.position, cameraPosition, speed );
			if ( transform.position == targetPosition && m_FastMove )
			{
				m_FastMove = false;
			}
		}

	}

}

<TerrainGennerationSetting>

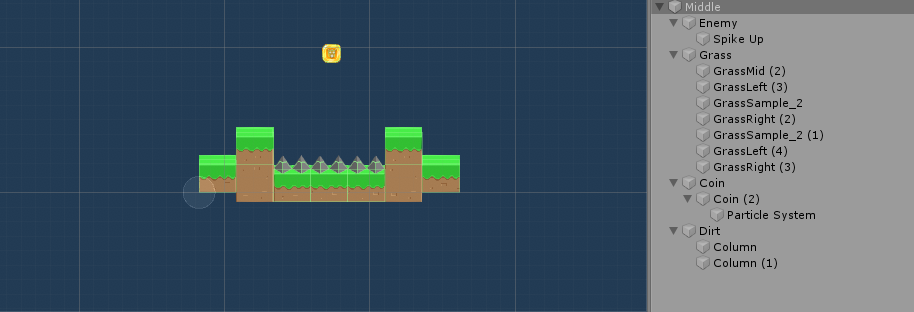

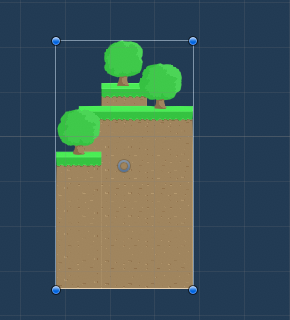

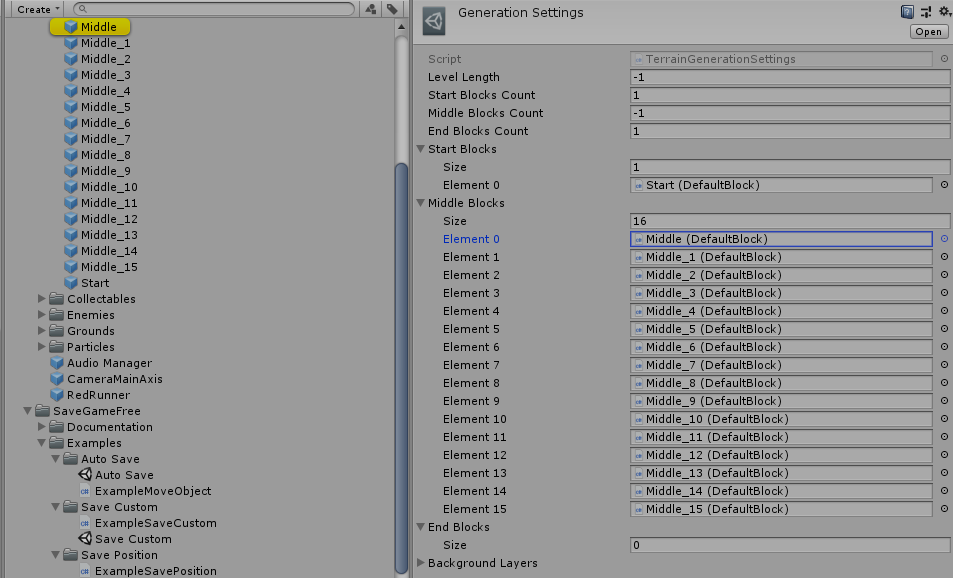

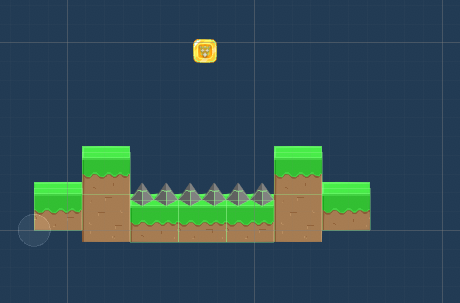

맵을 만들기 위한 블록에 대한 Terrain 정보



using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace RedRunner.TerrainGeneration
{

	[CreateAssetMenu (menuName = "Create Terrain Generator Settings")]
	public class TerrainGenerationSettings : ScriptableObject
	{

		[SerializeField]
		protected float m_LevelLength = 200f;
		[SerializeField]
		protected int m_StartBlocksCount = 1;
		[SerializeField]
		protected int m_MiddleBlocksCount = -1;
		[SerializeField]
		protected int m_EndBlocksCount = 1;
		[SerializeField]
		protected Block[] m_StartBlocks;
		[SerializeField]
		protected Block[] m_MiddleBlocks;
		[SerializeField]
		protected Block[] m_EndBlocks;
		[SerializeField]
		protected BackgroundLayer[] m_BackgroundLayers;

		public float LevelLength {
			get {
				return m_LevelLength;
			}
		}

		public int StartBlocksCount {
			get {
				return m_StartBlocksCount;
			}
		}

		public int MiddleBlocksCount {
			get {
				return m_MiddleBlocksCount;
			}
		}

		public int EndBlocksCount {
			get {
				return m_EndBlocksCount;
			}
		}

		public Block[] StartBlocks {
			get {
				return m_StartBlocks;
			}
		}

		public Block[] MiddleBlocks {
			get {
				return m_MiddleBlocks;
			}
		}

		public Block[] EndBlocks {
			get {
				return m_EndBlocks;
			}
		}

		public BackgroundLayer[] BackgroundLayers {
			get {
				return m_BackgroundLayers;
			}
		}

	}

}

<Terrain Gennerator>

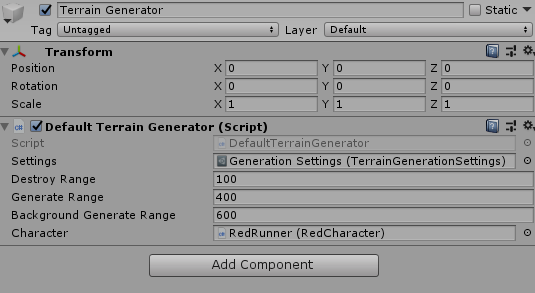

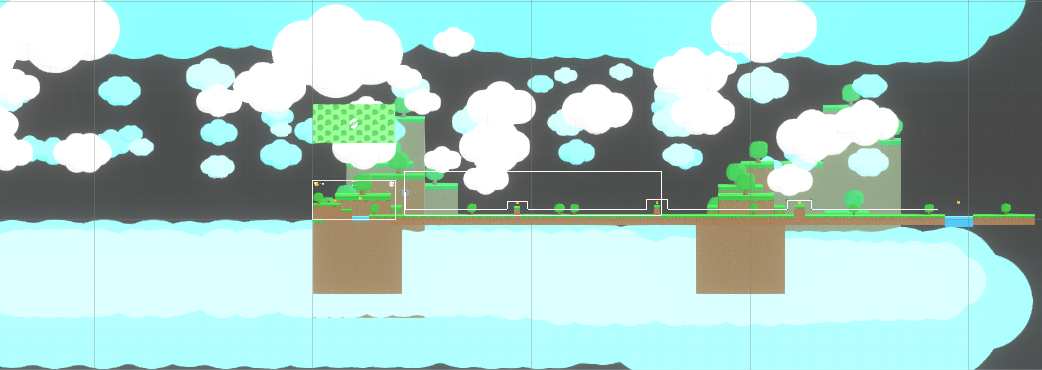

Update에 LastBlock과 Character의 좌표값을 계산해서 추가로 맵을 실시간으로 만들어준다.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

using RedRunner.Characters;

namespace RedRunner.TerrainGeneration
{

	public abstract class TerrainGenerator : MonoBehaviour
	{

		private static TerrainGenerator m_Singleton;

		public static TerrainGenerator Singleton
		{
			get
			{
				return m_Singleton;
			}
		}

		protected Dictionary<Vector3, Block> m_Blocks;
		protected Dictionary<Vector3, BackgroundBlock> m_BackgroundBlocks;
		protected BackgroundLayer[] m_BackgroundLayers;
		protected float m_PreviousX;
		protected float m_CurrentX;
		protected float m_FathestBackgroundX;
		[SerializeField]
		protected TerrainGenerationSettings m_Settings;
		protected int m_GeneratedStartBlocksCount;
		protected int m_GeneratedMiddleBlocksCount;
		protected int m_GeneratedEndBlocksCount;
		[SerializeField]
		protected float m_DestroyRange = 100f;
		[SerializeField]
		protected float m_GenerateRange = 100f;
		[SerializeField]
		protected float m_BackgroundGenerateRange = 200f;
		[SerializeField]
		protected Character m_Character;
		protected Block m_LastBlock;
		protected BackgroundBlock m_LastBackgroundBlock;
		protected float m_RemoveTime = 0f;
		protected bool m_Reset = false;

		public float PreviousX
		{
			get
			{
				return m_PreviousX;
			}
		}

		public float CurrentX
		{
			get
			{
				return m_CurrentX;
			}
		}

		public TerrainGenerationSettings Settings
		{
			get
			{
				return m_Settings;
			}
		}

		protected virtual void Awake ()
		{
			if ( m_Singleton != null )
			{
				Destroy ( gameObject );
				return;
			}
			m_Singleton = this;
			m_Blocks = new Dictionary<Vector3, Block> ();
			m_BackgroundBlocks = new Dictionary<Vector3, BackgroundBlock> ();
			m_BackgroundLayers = new BackgroundLayer[m_Settings.BackgroundLayers.Length];
			for ( int i = 0; i < m_Settings.BackgroundLayers.Length; i++ )
			{
				m_BackgroundLayers [ i ] = m_Settings.BackgroundLayers [ i ];
			}
			GameManager.OnReset += Reset;
		}

		protected virtual void Reset ()
		{
			m_Reset = true;
			RemoveAll ();
			m_CurrentX = 0f;
			m_LastBlock = null;
			m_LastBackgroundBlock = null;
			for ( int i = 0; i < m_BackgroundLayers.Length; i++ )
			{
				m_BackgroundLayers [ i ].Reset ();
			}
			m_FathestBackgroundX = 0f;
			m_Blocks.Clear ();
			m_BackgroundBlocks.Clear ();
			m_GeneratedStartBlocksCount = 0;
			m_GeneratedMiddleBlocksCount = 0;
			m_GeneratedEndBlocksCount = 0;
			m_Reset = false;
		}

		protected virtual void OnDestroy ()
		{
			m_Singleton = null;
		}

		protected virtual void Update ()
		{
			if ( m_Reset )
			{
				return;
			}
			if ( m_RemoveTime < Time.time )
			{
				m_RemoveTime = Time.time + 5f;
				Remove ();
			}
			Generate ();
		}

		public virtual void Generate ()
		{
			if ( m_CurrentX < m_Settings.LevelLength || m_Settings.LevelLength <= 0 )
			{
				bool isEnd = false, isStart = false, isMiddle = false;
				Block block = null;
				Vector3 current = new Vector3 ( m_CurrentX, 0f, 0f );
				float newX = 0f;
				if ( m_GeneratedStartBlocksCount < m_Settings.StartBlocksCount || m_Settings.StartBlocksCount <= 0 )
				{
					isStart = true;
					block = ChooseFrom ( m_Settings.StartBlocks );
				}
				else if ( m_GeneratedMiddleBlocksCount < m_Settings.MiddleBlocksCount || m_Settings.MiddleBlocksCount <= 0 )
				{
					isMiddle = true;
					block = ChooseFrom ( m_Settings.MiddleBlocks );
				}
				else if ( m_GeneratedEndBlocksCount < m_Settings.EndBlocksCount || m_Settings.EndBlocksCount <= 0 )
				{
					isEnd = true;
					block = ChooseFrom ( m_Settings.EndBlocks );
				}
				if ( m_LastBlock != null )
				{
					newX = m_CurrentX + m_LastBlock.Width;
				}
				else
				{
					newX = 0f;
				}
				if ( block != null && ( m_LastBlock == null || newX < m_Character.transform.position.x + m_GenerateRange ) )
				{
					if ( isStart )
					{
						if ( m_Settings.StartBlocksCount > 0 )
						{
							m_GeneratedStartBlocksCount++;
						}
					}
					else if ( isMiddle )
					{
						if ( m_Settings.MiddleBlocksCount > 0 )
						{
							m_GeneratedMiddleBlocksCount++;
						}
					}
					else if ( isEnd )
					{
						if ( m_Settings.EndBlocksCount > 0 )
						{
							m_GeneratedEndBlocksCount++;
						}
					}
					CreateBlock ( block, current );
				}
			}
			for ( int i = 0; i < m_BackgroundLayers.Length; i++ )
			{
				int random = Random.Range ( 0, 2 );
				bool generate = random == 1 ? true : false;
				if ( !generate )
				{
					continue;
				}
				Vector3 current = new Vector3 ( m_BackgroundLayers [ i ].CurrentX, 0f, 0f );
				BackgroundBlock block = ( BackgroundBlock )ChooseFrom ( m_BackgroundLayers [ i ].Blocks );
				float newX = 0f;
				if ( m_BackgroundLayers [ i ].LastBlock != null )
				{
					newX = m_BackgroundLayers [ i ].CurrentX + m_BackgroundLayers [ i ].LastBlock.Width;
				}
				else
				{
					newX = 0f;
				}
				if ( block != null && ( m_BackgroundLayers [ i ].LastBlock == null || newX < m_Character.transform.position.x + m_BackgroundGenerateRange ) )
				{
					CreateBackgroundBlock ( block, current, m_BackgroundLayers [ i ], i );
				}
			}
		}

		public virtual void Remove ()
		{
			List<Block> blocksToRemove = new List<Block> ();
			foreach ( KeyValuePair<Vector3, Block> block in m_Blocks )
			{
				if ( block.Value.transform.position.x - m_CurrentX > m_DestroyRange )
				{
					blocksToRemove.Add ( block.Value );
				}
			}
			List<BackgroundBlock> backgroundBlocksToRemove = new List<BackgroundBlock> ();
			foreach ( KeyValuePair<Vector3, BackgroundBlock> block in m_BackgroundBlocks )
			{
				if ( block.Value.transform.position.x - m_FathestBackgroundX > m_DestroyRange )
				{
					backgroundBlocksToRemove.Add ( block.Value );
				}
			}
			for ( int i = 0; i < blocksToRemove.Count; i++ )
			{
				RemoveBlock ( blocksToRemove [ i ] );
			}
			for ( int i = 0; i < backgroundBlocksToRemove.Count; i++ )
			{
				RemoveBackgroundBlock ( backgroundBlocksToRemove [ i ] );
			}
		}

		public virtual void RemoveAll ()
		{
			List<Block> blocksToRemove = new List<Block> ();
			foreach ( KeyValuePair<Vector3, Block> block in m_Blocks )
			{
				blocksToRemove.Add ( block.Value );
			}
			List<BackgroundBlock> backgroundBlocksToRemove = new List<BackgroundBlock> ();
			foreach ( KeyValuePair<Vector3, BackgroundBlock> block in m_BackgroundBlocks )
			{
				backgroundBlocksToRemove.Add ( block.Value );
			}
			for ( int i = 0; i < blocksToRemove.Count; i++ )
			{
				RemoveBlock ( blocksToRemove [ i ] );
			}
			for ( int i = 0; i < backgroundBlocksToRemove.Count; i++ )
			{
				RemoveBackgroundBlock ( backgroundBlocksToRemove [ i ] );
			}
		}

		public virtual void RemoveBlockAt ( Vector3 position )
		{
			RemoveBlock ( m_Blocks [ position ] );
		}

		public virtual void RemoveBlock ( Block block )
		{
			block.OnRemove ( this );
			Destroy ( m_Blocks [ block.transform.position ].gameObject );
			m_Blocks.Remove ( block.transform.position );
		}

		public virtual void RemoveBackgroundBlock ( BackgroundBlock block )
		{
			block.OnRemove ( this );
			Destroy ( m_BackgroundBlocks [ block.transform.position ].gameObject );
			m_BackgroundBlocks.Remove ( block.transform.position );
		}

		public virtual bool CreateBlock ( Block blockPrefab, Vector3 position )
		{
			if ( blockPrefab == null )
			{
				return false;
			}
			blockPrefab.PreGenerate ( this );
			Block block = Instantiate<Block> ( blockPrefab, position, Quaternion.identity );
			m_PreviousX = m_CurrentX;
			m_CurrentX += block.Width;
			m_Blocks.Add ( position, block );
			blockPrefab.PostGenerate ( this );
			m_LastBlock = block;
			return true;
		}

		public virtual bool CreateBackgroundBlock ( BackgroundBlock blockPrefab, Vector3 position, BackgroundLayer layer, int layerIndex )
		{
			if ( blockPrefab == null )
			{
				return false;
			}
			blockPrefab.PreGenerate ( this );
			position.z = blockPrefab.transform.position.z;
			position.y = blockPrefab.transform.position.y;
			BackgroundBlock block = Instantiate<BackgroundBlock> ( blockPrefab, position, Quaternion.identity );
			float width = Random.Range ( block.MinWidth, block.MaxWidth );
			m_BackgroundLayers [ layerIndex ].PreviousX = m_BackgroundLayers [ layerIndex ].CurrentX;
			m_BackgroundLayers [ layerIndex ].CurrentX += width;
			block.Width = width;
			m_BackgroundLayers [ layerIndex ].LastBlock = block;
			m_BackgroundBlocks.Add ( position, block );
			blockPrefab.PostGenerate ( this );
			if ( m_BackgroundLayers [ layerIndex ].CurrentX > m_FathestBackgroundX )
			{
				m_FathestBackgroundX = m_BackgroundLayers [ layerIndex ].CurrentX;
			}
			return true;
		}

		public Block GetCharacterBlock ()
		{
			Block characterBlock = null;
			foreach ( KeyValuePair<Vector3, Block> block in m_Blocks )
			{
				if ( block.Key.x <= m_Character.transform.position.x && block.Key.x + block.Value.Width > m_Character.transform.position.x )
				{
					characterBlock = block.Value;
					break;
				}
			}
			return characterBlock;
		}

		public static Block ChooseFrom ( Block[] blocks )
		{
			if ( blocks.Length <= 0 )
			{
				return null;
			}
			float total = 0;
			for ( int i = 0; i < blocks.Length; i++ )
			{
				total += blocks [ i ].Probability;
			}
			float randomPoint = Random.value * total;
			for ( int i = 0; i < blocks.Length; i++ )
			{
				if ( randomPoint < blocks [ i ].Probability )
				{
					return blocks [ i ];
				}
				else
				{
					randomPoint -= blocks [ i ].Probability;
				}
			}
			return blocks [ blocks.Length - 1 ];
		}

	}

}

<RedCharacter>

주인공 Character Rigidbody 2D /Capsule Colider를 포함하고 있다.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Events;

using UnityStandardAssets.CrossPlatformInput;

using RedRunner.Utilities;

namespace RedRunner.Characters
{

	public class RedCharacter : Character
	{
		#region Fields

		[Header ( "Character Details" )]
		[Space]
		[SerializeField]
		protected float m_MaxRunSpeed = 8f;
		[SerializeField]
		protected float m_RunSmoothTime = 5f;
		[SerializeField]
		protected float m_RunSpeed = 5f;
		[SerializeField]
		protected float m_WalkSpeed = 1.75f;
		[SerializeField]
		protected float m_JumpStrength = 10f;
		[SerializeField]
		protected string[] m_Actions = new string[0];
		[SerializeField]
		protected int m_CurrentActionIndex = 0;

		[Header ( "Character Reference" )]
		[Space]
		[SerializeField]
		protected Rigidbody2D m_Rigidbody2D;
		[SerializeField]
		protected Collider2D m_Collider2D;
		[SerializeField]
		protected Animator m_Animator;
		[SerializeField]
		protected GroundCheck m_GroundCheck;
		[SerializeField]
		protected ParticleSystem m_RunParticleSystem;
		[SerializeField]
		protected ParticleSystem m_JumpParticleSystem;
		[SerializeField]
		protected ParticleSystem m_WaterParticleSystem;
		[SerializeField]
		protected ParticleSystem m_BloodParticleSystem;
		[SerializeField]
		protected Skeleton m_Skeleton;
		[SerializeField]
		protected float m_RollForce = 10f;

		[Header ( "Character Audio" )]
		[Space]
		[SerializeField]
		protected AudioSource m_MainAudioSource;
		[SerializeField]
		protected AudioSource m_FootstepAudioSource;
		[SerializeField]
		protected AudioSource m_JumpAndGroundedAudioSource;

		#endregion

		#region Private Variables

		protected bool m_ClosingEye = false;
		protected bool m_Guard = false;
		protected bool m_Block = false;
		protected Vector2 m_Speed = Vector2.zero;
		protected float m_CurrentRunSpeed = 0f;
		protected float m_CurrentSmoothVelocity = 0f;
		protected int m_CurrentFootstepSoundIndex = 0;
		protected Vector3 m_InitialScale;
		protected Vector3 m_InitialPosition;

		#endregion

		#region Properties

		public override float MaxRunSpeed
		{
			get
			{
				return m_MaxRunSpeed;
			}
		}

		public override float RunSmoothTime
		{
			get
			{
				return m_RunSmoothTime;
			}
		}

		public override float RunSpeed
		{
			get
			{
				return m_RunSpeed;
			}
		}

		public override float WalkSpeed
		{
			get
			{
				return m_WalkSpeed;
			}
		}

		public override float JumpStrength
		{
			get
			{
				return m_JumpStrength;
			}
		}

		public override Vector2 Speed
		{
			get
			{
				return m_Speed;
			}
		}

		public override string[] Actions
		{
			get
			{
				return m_Actions;
			}
		}

		public override string CurrentAction
		{
			get
			{
				return m_Actions [ m_CurrentActionIndex ];
			}
		}

		public override int CurrentActionIndex
		{
			get
			{
				return m_CurrentActionIndex;
			}
		}

		public override GroundCheck GroundCheck
		{
			get
			{
				return m_GroundCheck;
			}
		}

		public override Rigidbody2D Rigidbody2D
		{
			get
			{
				return m_Rigidbody2D;
			}
		}

		public override Collider2D Collider2D
		{
			get
			{
				return m_Collider2D;
			}
		}

		public override Animator Animator
		{
			get
			{
				return m_Animator;
			}
		}

		public override ParticleSystem RunParticleSystem
		{
			get
			{
				return m_RunParticleSystem;
			}
		}

		public override ParticleSystem JumpParticleSystem
		{
			get
			{
				return m_JumpParticleSystem;
			}
		}

		public override ParticleSystem WaterParticleSystem
		{
			get
			{
				return m_WaterParticleSystem;
			}
		}

		public override ParticleSystem BloodParticleSystem
		{
			get
			{
				return m_BloodParticleSystem;
			}
		}

		public override Skeleton Skeleton
		{
			get
			{
				return m_Skeleton;
			}
		}

        public override bool ClosingEye
		{
			get
			{
				return m_ClosingEye;
			}
		}

		public override bool Guard
		{
			get
			{
				return m_Guard;
			}
		}

		public override bool Block
		{
			get
			{
				return m_Block;
			}
		}

		public override AudioSource Audio
		{
			get
			{
				return m_MainAudioSource;
			}
		}

		#endregion

		#region MonoBehaviour Messages

		void Awake ()
		{
			m_InitialPosition = transform.position;
			m_InitialScale = transform.localScale;
			m_GroundCheck.OnGrounded += GroundCheck_OnGrounded;
			m_Skeleton.OnActiveChanged += Skeleton_OnActiveChanged;
            IsDead = new Property<bool>(false);
			m_ClosingEye = false;
			m_Guard = false;
			m_Block = false;
			m_CurrentFootstepSoundIndex = 0;
			GameManager.OnReset += GameManager_OnReset;
		}

		void Update ()
		{
			if ( !GameManager.Singleton.gameStarted || !GameManager.Singleton.gameRunning )
			{
				return;
			}

			if ( transform.position.y < 0f )
			{
				Die ();
			}

			// Speed
			m_Speed = new Vector2 ( Mathf.Abs ( m_Rigidbody2D.velocity.x ), Mathf.Abs ( m_Rigidbody2D.velocity.y ) );

			// Speed Calculations
			m_CurrentRunSpeed = m_RunSpeed;
			if ( m_Speed.x >= m_RunSpeed )
			{
				m_CurrentRunSpeed = Mathf.SmoothDamp ( m_Speed.x, m_MaxRunSpeed, ref m_CurrentSmoothVelocity, m_RunSmoothTime );
			}

			// Input Processing
			Move ( CrossPlatformInputManager.GetAxis ( "Horizontal" ) );
			if ( CrossPlatformInputManager.GetButtonDown ( "Jump" ) )
			{
				Jump ();
			}
			if ( IsDead.Value && !m_ClosingEye )
			{
				StartCoroutine ( CloseEye () );
			}
			if ( CrossPlatformInputManager.GetButtonDown ( "Guard" ) )
			{
				m_Guard = !m_Guard;
			}
			if ( m_Guard )
			{
				if ( CrossPlatformInputManager.GetButtonDown ( "Fire" ) )
				{
					m_Animator.SetTrigger ( m_Actions [ m_CurrentActionIndex ] );
					if ( m_CurrentActionIndex < m_Actions.Length - 1 )
					{
						m_CurrentActionIndex++;
					}
					else
					{
						m_CurrentActionIndex = 0;
					}
				}
			}

			if ( Input.GetButtonDown ( "Roll" ) )
			{
				Vector2 force = new Vector2 ( 0f, 0f );
				if ( transform.localScale.z > 0f )
				{
					force.x = m_RollForce;
				}
				else if ( transform.localScale.z < 0f )
				{
					force.x = -m_RollForce;
				}
				m_Rigidbody2D.AddForce ( force );
			}
		}

		void LateUpdate ()
		{
			m_Animator.SetFloat ( "Speed", m_Speed.x );
			m_Animator.SetFloat ( "VelocityX", Mathf.Abs ( m_Rigidbody2D.velocity.x ) );
			m_Animator.SetFloat ( "VelocityY", m_Rigidbody2D.velocity.y );
			m_Animator.SetBool ( "IsGrounded", m_GroundCheck.IsGrounded );
			m_Animator.SetBool ( "IsDead", IsDead.Value );
			m_Animator.SetBool ( "Block", m_Block );
			m_Animator.SetBool ( "Guard", m_Guard );
			if ( Input.GetButtonDown ( "Roll" ) )
			{
				m_Animator.SetTrigger ( "Roll" );
			}
		}

		//		void OnCollisionEnter2D ( Collision2D collision2D )
		//		{
		//			bool isGround = collision2D.collider.CompareTag ( GroundCheck.GROUND_TAG );
		//			if ( isGround && !m_IsDead )
		//			{
		//				bool isBottom = false;
		//				for ( int i = 0; i < collision2D.contacts.Length; i++ )
		//				{
		//					if ( !isBottom )
		//					{
		//						isBottom = collision2D.contacts [ i ].normal.y == 1;
		//					}
		//					else
		//					{
		//						break;
		//					}
		//				}
		//				if ( isBottom )
		//				{
		//					m_JumpParticleSystem.Play ();
		//				}
		//			}
		//		}

		#endregion

		#region Private Methods

		IEnumerator CloseEye ()
		{
			m_ClosingEye = true;
			yield return new WaitForSeconds ( 0.6f );
			while ( m_Skeleton.RightEye.localScale.y > 0f )
			{
				if ( m_Skeleton.RightEye.localScale.y > 0f )
				{
					Vector3 scale = m_Skeleton.RightEye.localScale;
					scale.y -= 0.1f;
					m_Skeleton.RightEye.localScale = scale;
				}
				if ( m_Skeleton.LeftEye.localScale.y > 0f )
				{
					Vector3 scale = m_Skeleton.LeftEye.localScale;
					scale.y -= 0.1f;
					m_Skeleton.LeftEye.localScale = scale;
				}
				yield return new WaitForSeconds ( 0.05f );
			}
		}

		#endregion

		#region Public Methods

		public virtual void PlayFootstepSound ()
		{
			if ( m_GroundCheck.IsGrounded )
			{
				AudioManager.Singleton.PlayFootstepSound ( m_FootstepAudioSource, ref m_CurrentFootstepSoundIndex );
			}
		}

		public override void Move ( float horizontalAxis )
		{
			if ( !IsDead.Value )
			{
				float speed = m_CurrentRunSpeed;
//				if ( CrossPlatformInputManager.GetButton ( "Walk" ) )
//				{
//					speed = m_WalkSpeed;
				//				}
				Vector2 velocity = m_Rigidbody2D.velocity;
				velocity.x = speed * horizontalAxis;
				m_Rigidbody2D.velocity = velocity;
				if ( horizontalAxis > 0f )
				{
					Vector3 scale = transform.localScale;
					scale.x = Mathf.Sign ( horizontalAxis );
					transform.localScale = scale;
				}
				else if ( horizontalAxis < 0f )
				{
					Vector3 scale = transform.localScale;
					scale.x = Mathf.Sign ( horizontalAxis );
					transform.localScale = scale;
				}
			}
		}

		public override void Jump ()
		{
			if ( !IsDead.Value )
			{
				if ( m_GroundCheck.IsGrounded )
				{
					Vector2 velocity = m_Rigidbody2D.velocity;
					velocity.y = m_JumpStrength;
					m_Rigidbody2D.velocity = velocity;
					m_Animator.ResetTrigger ( "Jump" );
					m_Animator.SetTrigger ( "Jump" );
					m_JumpParticleSystem.Play ();
					AudioManager.Singleton.PlayJumpSound ( m_JumpAndGroundedAudioSource );
				}
			}
		}

		public override void Die ()
		{
			Die ( false );
		}

		public override void Die ( bool blood )
		{
			if ( !IsDead.Value )
			{
                IsDead.Value = true;
				m_Skeleton.SetActive ( true, m_Rigidbody2D.velocity );
				if ( blood )
				{
					ParticleSystem particle = Instantiate<ParticleSystem> (
						                          m_BloodParticleSystem,
						                          transform.position,
						                          Quaternion.identity );
					Destroy ( particle.gameObject, particle.main.duration );
				}
				CameraController.Singleton.fastMove = true;
			}
		}

		public override void EmitRunParticle ()
		{
			if ( !IsDead.Value )
			{
				m_RunParticleSystem.Emit ( 1 );
			}
		}

		public override void Reset ()
		{
            IsDead.Value = false;
			m_ClosingEye = false;
			m_Guard = false;
			m_Block = false;
			m_CurrentFootstepSoundIndex = 0;
			transform.localScale = m_InitialScale;
			m_Rigidbody2D.velocity = Vector2.zero;
			m_Skeleton.SetActive ( false, m_Rigidbody2D.velocity );
		}

		#endregion

		#region Events

		void GameManager_OnReset ()
		{
			transform.position = m_InitialPosition;
			Reset ();
		}

		void Skeleton_OnActiveChanged ( bool active )
		{
			m_Animator.enabled = !active;
			m_Collider2D.enabled = !active;
			m_Rigidbody2D.simulated = !active;
		}

		void GroundCheck_OnGrounded ()
		{
			if ( !IsDead.Value )
			{
				m_JumpParticleSystem.Play ();
				AudioManager.Singleton.PlayGroundedSound ( m_JumpAndGroundedAudioSource );
			}
		}

		#endregion

		[System.Serializable]
		public class CharacterDeadEvent : UnityEvent
		{

		}

	}

}

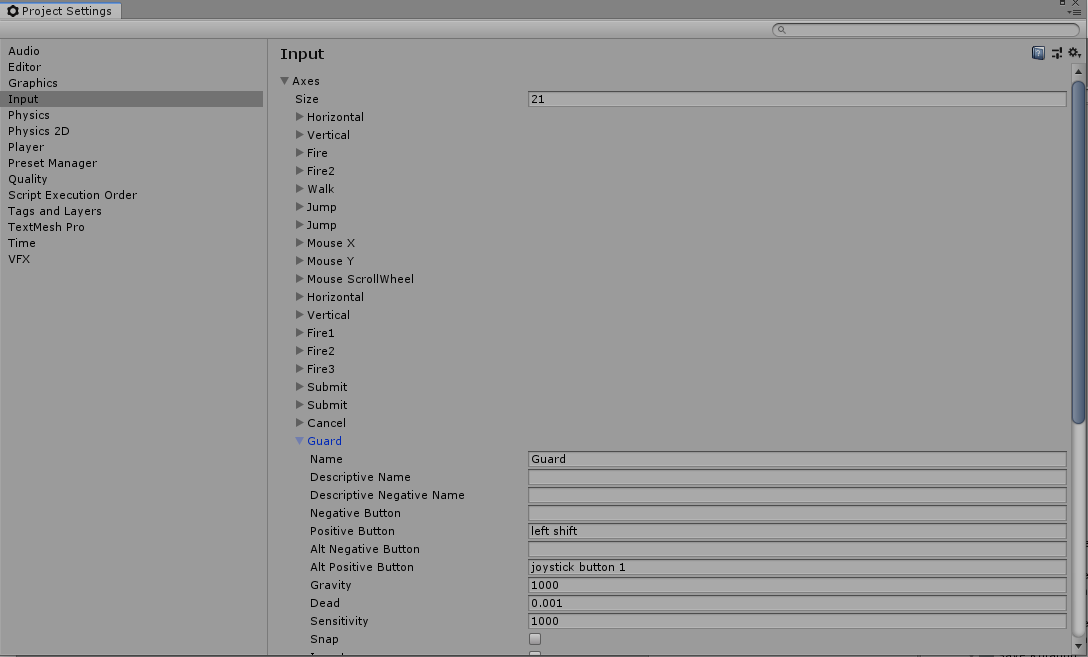

움직임에 대한 이동 방향키와 , 점프, 가드, 롤이라는 키 입력으로 처리가 되어있다. 확인해보니

Project Setting의 Input에 설정이 추가되어있는 것을 확인이 가능하다.

<Coin>

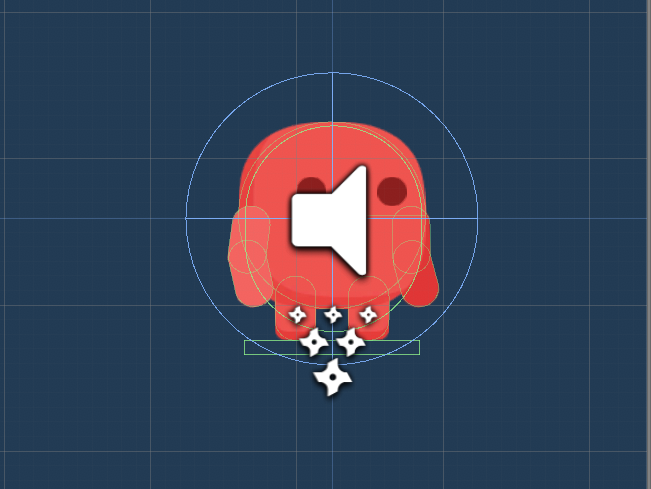

먹을 수 있는 요소 /Collision

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

using RedRunner.Characters;

namespace RedRunner.Collectables
{
	public class Coin : Collectable
	{
		[SerializeField]
		protected ParticleSystem m_ParticleSystem;
		[SerializeField]
		protected SpriteRenderer m_SpriteRenderer;
		[SerializeField]
		protected Collider2D m_Collider2D;
		[SerializeField]
		protected Animator m_Animator;
		[SerializeField]
		protected bool m_UseOnTriggerEnter2D = true;

		public override SpriteRenderer SpriteRenderer {
			get {
				return m_SpriteRenderer;
			}
		}

		public override Animator Animator {
			get {
				return m_Animator;
			}
		}

		public override Collider2D Collider2D {
			get {
				return m_Collider2D;
			}
		}

		public override bool UseOnTriggerEnter2D {
			get {
				return m_UseOnTriggerEnter2D;
			}
			set {
				m_UseOnTriggerEnter2D = value;
			}
		}

		public override void OnTriggerEnter2D (Collider2D other)
		{
			Character character = other.GetComponent<Character> ();
			if (m_UseOnTriggerEnter2D && character != null) {
				Collect ();
			}
		}

		public override void OnCollisionEnter2D (Collision2D collision2D)
		{
			Character character = collision2D.collider.GetComponent<Character> ();
			if (!m_UseOnTriggerEnter2D && character != null) {
				Collect ();
			}
		}

		public override void Collect ()
		{
            GameManager.Singleton.m_Coin.Value++;
			m_Animator.SetTrigger (COLLECT_TRIGGER);
			m_ParticleSystem.Play ();
			m_SpriteRenderer.enabled = false;
			m_Collider2D.enabled = false;
			Destroy (gameObject, m_ParticleSystem.main.duration);
			AudioManager.Singleton.PlayCoinSound (transform.position);
		}
	}
}

코어라고 생각하는 항목들에 대해서 간단하게 코드 분석을 진행해봤다.

주의 깊게 본 코드는 캐릭터의 좌표를 기반으로 실시간으로 맵을 만들어주는 항목과 코드 스타일 및 매니저 항목이었다,

그리 어렵지 않은 코드여서 금방 어느 정도 구조를 파악할 수 있었다.



★★☆☆☆
