유니티 로얄 - Unity Royal 샘플 코드 분석
유니티 로얄 샘플 프로젝트를 코드 분석을 진행했다.
본인의 개인적인 시각으로 코드를 분석한 것임을 참고하면 좋겠다.
반응형
게임 플레이영상은 다음과 같다.
프로젝트 Git 주소 : [링크]
ciro-unity/UnityRoyale-Public
Public release of the Unity Royale project. All of the assets are redistributable. - ciro-unity/UnityRoyale-Public
github.com
GameManager에서 기본적으로 gameOver가 아닐 경우의 배치에 포함된 Unity 유닛의 상태를 처리하고 발사체도 처리한다.
private void Update()
{
if(gameOver)
return;
ThinkingPlaceable targetToPass; //ref
ThinkingPlaceable p; //ref
for(int pN=0; pN<allThinkingPlaceables.Count; pN++)
{
p = allThinkingPlaceables[pN];
if(updateAllPlaceables)
p.state = ThinkingPlaceable.States.Idle; //forces the assignment of a target in the switch below
switch(p.state)
{
case ThinkingPlaceable.States.Idle:
//this if is for innocuous testing Units
if(p.targetType == Placeable.PlaceableTarget.None)
break;
//find closest target and assign it to the ThinkingPlaceable
bool targetFound = FindClosestInList(p.transform.position, GetAttackList(p.faction, p.targetType), out targetToPass);
if(!targetFound) Debug.LogError("No more targets!"); //this should only happen on Game Over
p.SetTarget(targetToPass);
p.Seek();
break;
case ThinkingPlaceable.States.Seeking:
if(p.IsTargetInRange())
{
p.StartAttack();
}
break;
case ThinkingPlaceable.States.Attacking:
if(p.IsTargetInRange())
{
if(Time.time >= p.lastBlowTime + p.attackRatio)
{
p.DealBlow();
//Animation will produce the damage, calling animation events OnDealDamage and OnProjectileFired. See ThinkingPlaceable
}
}
break;
case ThinkingPlaceable.States.Dead:
Debug.LogError("A dead ThinkingPlaceable shouldn't be in this loop");
break;
}
}
Projectile currProjectile;
float progressToTarget;
for(int prjN=0; prjN<allProjectiles.Count; prjN++)
{
currProjectile = allProjectiles[prjN];
progressToTarget = currProjectile.Move();
if(progressToTarget >= 1f)
{
if(currProjectile.target.state != ThinkingPlaceable.States.Dead) //target might be dead already as this projectile is flying
{
float newHP = currProjectile.target.SufferDamage(currProjectile.damage);
currProjectile.target.healthBar.SetHealth(newHP);
}
Destroy(currProjectile.gameObject);
allProjectiles.RemoveAt(prjN);
}
}
updateAllPlaceables = false; //is set to true by UseCard()

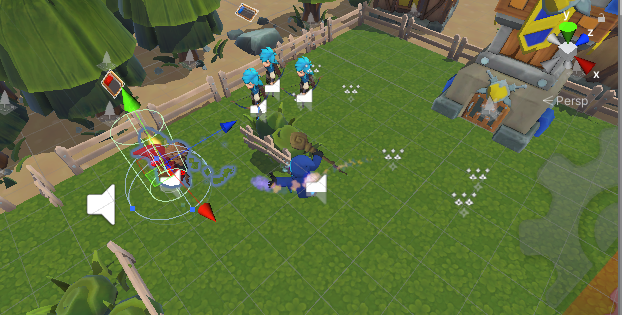

}Unit 클래스는 다음과 같다. 각 상태에 따른 애니메이션과 각종 유닛 수치에 따른 세팅 및 처리를 진행한다.
namespace UnityRoyale
{
//humanoid or anyway a walking placeable
public class Unit : ThinkingPlaceable
{
//data coming from the PlaceableData
private float speed;
private Animator animator;
private NavMeshAgent navMeshAgent;
private void Awake()
{
pType = Placeable.PlaceableType.Unit;
//find references to components
animator = GetComponent<Animator>();
navMeshAgent = GetComponent<NavMeshAgent>(); //will be disabled until Activate is called
audioSource = GetComponent<AudioSource>();
}
//called by GameManager when this Unit is played on the play field
public void Activate(Faction pFaction, PlaceableData pData)
{
faction = pFaction;
hitPoints = pData.hitPoints;
targetType = pData.targetType;
attackRange = pData.attackRange;
attackRatio = pData.attackRatio;
speed = pData.speed;
damage = pData.damagePerAttack;
attackAudioClip = pData.attackClip;
dieAudioClip = pData.dieClip;
//TODO: add more as necessary
navMeshAgent.speed = speed;
animator.SetFloat("MoveSpeed", speed); //will act as multiplier to the speed of the run animation clip
state = States.Idle;
navMeshAgent.enabled = true;
}
public override void SetTarget(ThinkingPlaceable t)
{
base.SetTarget(t);
}
//Unit moves towards the target
public override void Seek()
{
if(target == null)
return;
base.Seek();
navMeshAgent.SetDestination(target.transform.position);
navMeshAgent.isStopped = false;
animator.SetBool("IsMoving", true);
}
//Unit has gotten to its target. This function puts it in "attack mode", but doesn't delive any damage (see DealBlow)
public override void StartAttack()
{
base.StartAttack();
navMeshAgent.isStopped = true;
animator.SetBool("IsMoving", false);
}
//Starts the attack animation, and is repeated according to the Unit's attackRatio
public override void DealBlow()
{
base.DealBlow();
animator.SetTrigger("Attack");
transform.forward = (target.transform.position - transform.position).normalized; //turn towards the target
}
public override void Stop()
{
base.Stop();
navMeshAgent.isStopped = true;
animator.SetBool("IsMoving", false);
}
protected override void Die()
{
base.Die();
navMeshAgent.enabled = false;
animator.SetTrigger("IsDead");
}
}
}
반응형

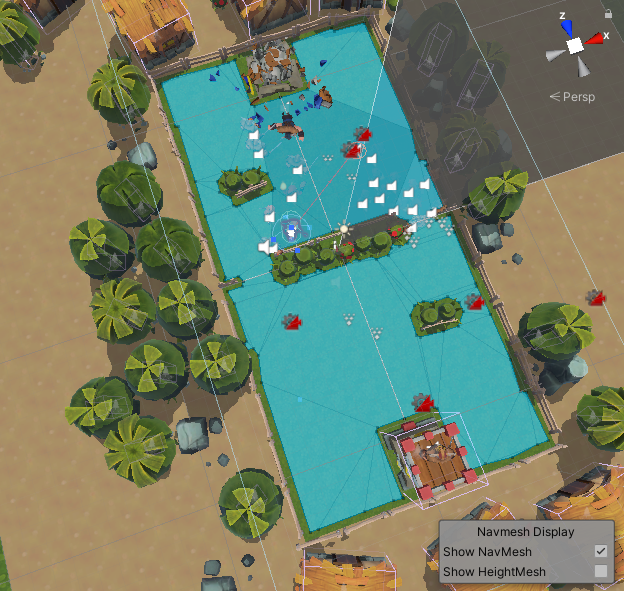

Navmesh Agent를 각 Unity Prefab이 포함되어있어서 타겟을 기준으로 길 찾기 및 타깃 이동을 처리가 된 것을 확인 가능했다.

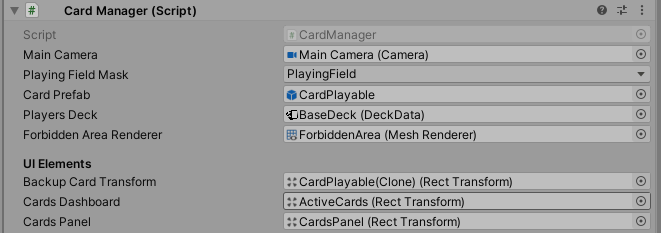

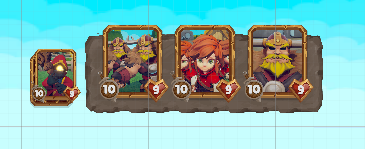

카드 매니져를 통해서 UI에 있는 카드를 컨트롤 구성되어있다.
namespace UnityRoyale
{
public class CardManager : MonoBehaviour
{
public Camera mainCamera; //public reference
public LayerMask playingFieldMask;
public GameObject cardPrefab;
public DeckData playersDeck;
public MeshRenderer forbiddenAreaRenderer;
public UnityAction<CardData, Vector3, Placeable.Faction> OnCardUsed;
[Header("UI Elements")]
public RectTransform backupCardTransform; //the smaller card that sits in the deck
public RectTransform cardsDashboard; //the UI panel that contains the actual playable cards
public RectTransform cardsPanel; //the UI panel that contains all cards, the deck, and the dashboard (center aligned)
private Card[] cards;
private bool cardIsActive = false; //when true, a card is being dragged over the play field
private GameObject previewHolder;
private Vector3 inputCreationOffset = new Vector3(0f, 0f, 1f); //offsets the creation of units so that they are not under the player's finger
private void Awake()
{
previewHolder = new GameObject("PreviewHolder");
cards = new Card[3]; //3 is the length of the dashboard
}
public void LoadDeck()
{
DeckLoader newDeckLoaderComp = gameObject.AddComponent<DeckLoader>();
newDeckLoaderComp.OnDeckLoaded += DeckLoaded;
newDeckLoaderComp.LoadDeck(playersDeck);
}
//...
private void DeckLoaded()
{
Debug.Log("Player's deck loaded");
//setup initial cards
StartCoroutine(AddCardToDeck(.1f));
for(int i=0; i<cards.Length; i++)
{
StartCoroutine(PromoteCardFromDeck(i, .4f + i));
StartCoroutine(AddCardToDeck(.8f + i));
}
}
//moves the preview card from the deck to the active card dashboard
private IEnumerator PromoteCardFromDeck(int position, float delay = 0f)
{
yield return new WaitForSeconds(delay);
backupCardTransform.SetParent(cardsDashboard, true);
//move and scale into position
backupCardTransform.DOAnchorPos(new Vector2(210f * (position+1) + 20f, 0f),
.2f + (.05f*position)).SetEase(Ease.OutQuad);
backupCardTransform.localScale = Vector3.one;
//store a reference to the Card component in the array
Card cardScript = backupCardTransform.GetComponent<Card>();
cardScript.cardId = position;
cards[position] = cardScript;
//setup listeners on Card events
cardScript.OnTapDownAction += CardTapped;
cardScript.OnDragAction += CardDragged;
cardScript.OnTapReleaseAction += CardReleased;
}
//adds a new card to the deck on the left, ready to be used
private IEnumerator AddCardToDeck(float delay = 0f) //TODO: pass in the CardData dynamically
{
yield return new WaitForSeconds(delay);
//create new card
backupCardTransform = Instantiate<GameObject>(cardPrefab, cardsPanel).GetComponent<RectTransform>();
backupCardTransform.localScale = Vector3.one * 0.7f;
//send it to the bottom left corner
backupCardTransform.anchoredPosition = new Vector2(180f, -300f);
backupCardTransform.DOAnchorPos(new Vector2(180f, 0f), .2f).SetEase(Ease.OutQuad);
//populate CardData on the Card script
Card cardScript = backupCardTransform.GetComponent<Card>();
cardScript.InitialiseWithData(playersDeck.GetNextCardFromDeck());
}
private void CardTapped(int cardId)
{
cards[cardId].GetComponent<RectTransform>().SetAsLastSibling();
forbiddenAreaRenderer.enabled = true;
}
private void CardDragged(int cardId, Vector2 dragAmount)
{
cards[cardId].transform.Translate(dragAmount);
//raycasting to check if the card is on the play field
RaycastHit hit;
Ray ray = mainCamera.ScreenPointToRay(Input.mousePosition);
bool planeHit = Physics.Raycast(ray, out hit, Mathf.Infinity, playingFieldMask);
if(planeHit)
{
if(!cardIsActive)
{
cardIsActive = true;
previewHolder.transform.position = hit.point;
cards[cardId].ChangeActiveState(true); //hide card
//retrieve arrays from the CardData
PlaceableData[] dataToSpawn = cards[cardId].cardData.placeablesData;
Vector3[] offsets = cards[cardId].cardData.relativeOffsets;
//spawn all the preview Placeables and parent them to the cardPreview
for(int i=0; i<dataToSpawn.Length; i++)
{
GameObject newPlaceable = GameObject.Instantiate<GameObject>(dataToSpawn[i].associatedPrefab,
hit.point + offsets[i] + inputCreationOffset,
Quaternion.identity,
previewHolder.transform);
}
}
else
{
//temporary copy has been created, we move it along with the cursor
previewHolder.transform.position = hit.point;
}
}
else
{
if(cardIsActive)
{
cardIsActive = false;
cards[cardId].ChangeActiveState(false); //show card
ClearPreviewObjects();
}
}
}
private void CardReleased(int cardId)
{
//raycasting to check if the card is on the play field
RaycastHit hit;
Ray ray = mainCamera.ScreenPointToRay(Input.mousePosition);
if (Physics.Raycast(ray, out hit, Mathf.Infinity, playingFieldMask))
{
if(OnCardUsed != null)
OnCardUsed(cards[cardId].cardData, hit.point + inputCreationOffset, Placeable.Faction.Player); //GameManager picks this up to spawn the actual Placeable
ClearPreviewObjects();
Destroy(cards[cardId].gameObject); //remove the card itself
StartCoroutine(PromoteCardFromDeck(cardId, .2f));
StartCoroutine(AddCardToDeck(.6f));
}
else
{
cards[cardId].GetComponent<RectTransform>().DOAnchorPos(new Vector2(220f * (cardId+1), 0f),
.2f).SetEase(Ease.OutQuad);
}
forbiddenAreaRenderer.enabled = false;
}
//happens when the card is put down on the playing field, and while dragging (when moving out of the play field)
private void ClearPreviewObjects()
{
//destroy all the preview Placeables
for(int i=0; i<previewHolder.transform.childCount; i++)
{
Destroy(previewHolder.transform.GetChild(i).gameObject);
}
}
}
}반응형
Card Class는 다음과 같다. 심플하게 카드의 데이터의 데이터와 Input( touch , drag, down)에 대한 기능이 구현되어 있다.
namespace UnityRoyale
{
public class Card : MonoBehaviour, IDragHandler, IPointerUpHandler, IPointerDownHandler
{
public UnityAction<int, Vector2> OnDragAction;
public UnityAction<int> OnTapDownAction, OnTapReleaseAction;
[HideInInspector] public int cardId;
[HideInInspector] public CardData cardData;
public Image portraitImage; //Inspector-set reference
private CanvasGroup canvasGroup;
private void Awake()
{
canvasGroup = GetComponent<CanvasGroup>();
}
//called by CardManager, it feeds CardData so this card can display the placeable's portrait
public void InitialiseWithData(CardData cData)
{
cardData = cData;
portraitImage.sprite = cardData.cardImage;
}
public void OnPointerDown(PointerEventData pointerEvent)
{
if(OnTapDownAction != null)
OnTapDownAction(cardId);
}
public void OnDrag(PointerEventData pointerEvent)
{
if(OnDragAction != null)
OnDragAction(cardId, pointerEvent.delta);
}
public void OnPointerUp(PointerEventData pointerEvent)
{
if(OnTapReleaseAction != null)
OnTapReleaseAction(cardId);
}
public void ChangeActiveState(bool isActive)
{
canvasGroup.alpha = (isActive) ? .05f : 1f;
}
}
}처음 카메라워킹은 Unity의 기능인 Cinemachine을 사용해서 처리한듯하다.

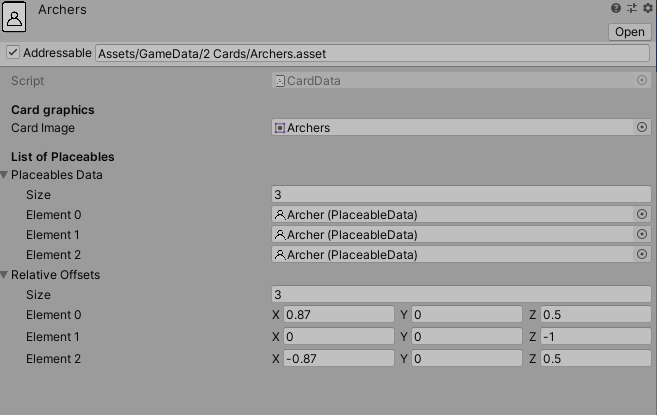

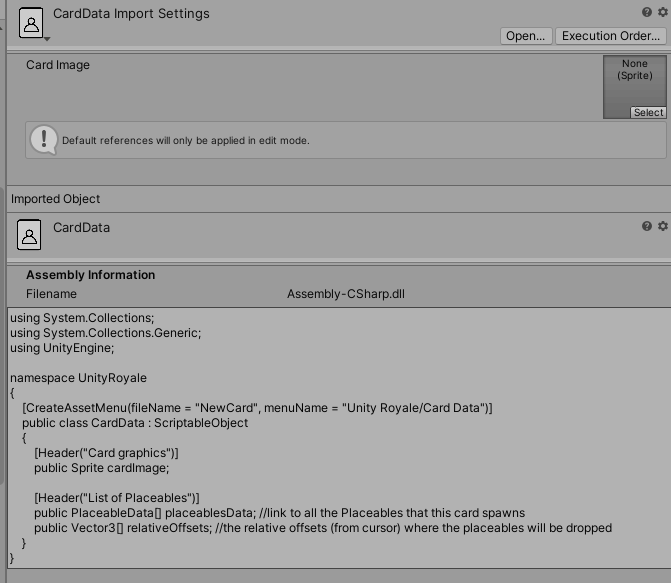

각 유닛의 데이터는 Addressable와 ScriptableObjects을 통해서 데이터를 구성했다. (에셋 번들 같은 것이라고 생각하면 된다.)
상대 CPU 플레이어는 카드를 특정기준마다 랜덤으로 선택해서 내도록 구성되어있다.
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Events;
namespace UnityRoyale
{
public class CPUOpponent : MonoBehaviour
{
public DeckData aiDeck;
public UnityAction<CardData, Vector3, Placeable.Faction> OnCardUsed;
private bool act = false;
private Coroutine actingCoroutine;
public float opponentLoopTime = 5f;
public void LoadDeck()
{
DeckLoader newDeckLoaderComp = gameObject.AddComponent<DeckLoader>();
newDeckLoaderComp.OnDeckLoaded += DeckLoaded;
newDeckLoaderComp.LoadDeck(aiDeck);
}
//...
private void DeckLoaded()
{
Debug.Log("AI deck loaded");
//StartActing();
}
public void StartActing()
{
Invoke("Bridge", 0f);
}
private void Bridge()
{
act = true;
actingCoroutine = StartCoroutine(CreateRandomCards());
}
public void StopActing()
{
act = false;
StopCoroutine(actingCoroutine);
}
//TODO: create a proper AI
private IEnumerator CreateRandomCards()
{
while(act)
{
yield return new WaitForSeconds(opponentLoopTime);
if(OnCardUsed != null)
{
Vector3 newPos = new Vector3(Random.Range(-5f, 5f), 0f, Random.Range(3f, 8.5f));
OnCardUsed(aiDeck.GetNextCardFromDeck(), newPos, Placeable.Faction.Opponent);
}
}
}
}
}★★★☆☆
반응형
댓글
