유니티 로얄 - Unity Royal 샘플 코드 분석

유니티 로얄 샘플 프로젝트를 코드 분석을 진행했다.

본인의 개인적인 시각으로 코드를 분석한 것임을 참고하면 좋겠다.

반응형

게임 플레이영상은 다음과 같다.

동영상 서비스가 종료되어 해당 콘텐츠를 재생할 수 없습니다.





프로젝트 Git 주소 :  [링크]

ciro-unity/UnityRoyale-Public



GameManager에서 기본적으로 gameOver가 아닐 경우의 배치에 포함된 Unity 유닛의 상태를 처리하고 발사체도 처리한다.

private void Update()
        {
            if(gameOver)
                return;

            ThinkingPlaceable targetToPass; //ref
			ThinkingPlaceable p; //ref

			for(int pN=0; pN<allThinkingPlaceables.Count; pN++)
            {
                p = allThinkingPlaceables[pN];

                if(updateAllPlaceables)
                    p.state = ThinkingPlaceable.States.Idle; //forces the assignment of a target in the switch below

                switch(p.state)
                {
                    case ThinkingPlaceable.States.Idle:
                        //this if is for innocuous testing Units
                        if(p.targetType == Placeable.PlaceableTarget.None)
                            break;

                        //find closest target and assign it to the ThinkingPlaceable
                        bool targetFound = FindClosestInList(p.transform.position, GetAttackList(p.faction, p.targetType), out targetToPass);
                        if(!targetFound) Debug.LogError("No more targets!"); //this should only happen on Game Over
                        p.SetTarget(targetToPass);
						p.Seek();
                        break;


                    case ThinkingPlaceable.States.Seeking:
						if(p.IsTargetInRange())
                    	{
							p.StartAttack();
						}
                        break;


					case ThinkingPlaceable.States.Attacking:
						if(p.IsTargetInRange())
						{
							if(Time.time >= p.lastBlowTime + p.attackRatio)
							{
								p.DealBlow();
								//Animation will produce the damage, calling animation events OnDealDamage and OnProjectileFired. See ThinkingPlaceable
							}
						}
						break;

					case ThinkingPlaceable.States.Dead:
						Debug.LogError("A dead ThinkingPlaceable shouldn't be in this loop");
						break;
                }
            }

			Projectile currProjectile;
			float progressToTarget;
			for(int prjN=0; prjN<allProjectiles.Count; prjN++)
            {
				currProjectile = allProjectiles[prjN];
				progressToTarget = currProjectile.Move();
				if(progressToTarget >= 1f)
				{
					if(currProjectile.target.state != ThinkingPlaceable.States.Dead) //target might be dead already as this projectile is flying
					{
						float newHP = currProjectile.target.SufferDamage(currProjectile.damage);
						currProjectile.target.healthBar.SetHealth(newHP);
					}
					Destroy(currProjectile.gameObject);
					allProjectiles.RemoveAt(prjN);
				}
			}

            updateAllPlaceables = false; //is set to true by UseCard()
        }

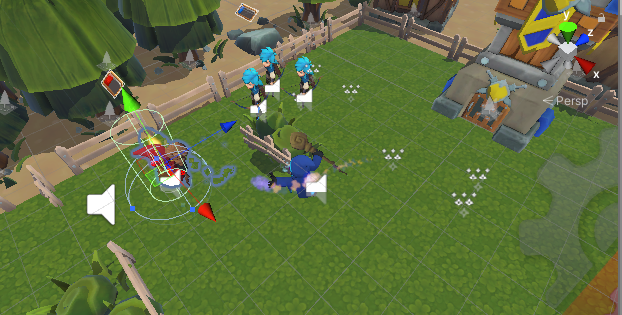

Unit 클래스는 다음과 같다. 각 상태에 따른 애니메이션과 각종 유닛 수치에 따른 세팅 및 처리를 진행한다.

namespace UnityRoyale
{
    //humanoid or anyway a walking placeable
    public class Unit : ThinkingPlaceable
    {
        //data coming from the PlaceableData
        private float speed;

        private Animator animator;
        private NavMeshAgent navMeshAgent;

        private void Awake()
        {
            pType = Placeable.PlaceableType.Unit;

            //find references to components
            animator = GetComponent<Animator>();
            navMeshAgent = GetComponent<NavMeshAgent>(); //will be disabled until Activate is called
			audioSource = GetComponent<AudioSource>();
        }

        //called by GameManager when this Unit is played on the play field
        public void Activate(Faction pFaction, PlaceableData pData)
        {
            faction = pFaction;
            hitPoints = pData.hitPoints;
            targetType = pData.targetType;
            attackRange = pData.attackRange;
            attackRatio = pData.attackRatio;
            speed = pData.speed;
            damage = pData.damagePerAttack;
			attackAudioClip = pData.attackClip;
			dieAudioClip = pData.dieClip;
            //TODO: add more as necessary

            navMeshAgent.speed = speed;
            animator.SetFloat("MoveSpeed", speed); //will act as multiplier to the speed of the run animation clip

            state = States.Idle;
            navMeshAgent.enabled = true;
        }

        public override void SetTarget(ThinkingPlaceable t)
        {
            base.SetTarget(t);
        }

		//Unit moves towards the target
        public override void Seek()
        {
            if(target == null)
                return;

            base.Seek();

            navMeshAgent.SetDestination(target.transform.position);
            navMeshAgent.isStopped = false;
            animator.SetBool("IsMoving", true);
        }

		//Unit has gotten to its target. This function puts it in "attack mode", but doesn't delive any damage (see DealBlow)
        public override void StartAttack()
        {
            base.StartAttack();

            navMeshAgent.isStopped = true;
            animator.SetBool("IsMoving", false);
        }

		//Starts the attack animation, and is repeated according to the Unit's attackRatio
        public override void DealBlow()
        {
            base.DealBlow();

            animator.SetTrigger("Attack");
            transform.forward = (target.transform.position - transform.position).normalized; //turn towards the target
        }

		public override void Stop()
		{
			base.Stop();

			navMeshAgent.isStopped = true;
			animator.SetBool("IsMoving", false);
		}

        protected override void Die()
        {
            base.Die();

            navMeshAgent.enabled = false;
            animator.SetTrigger("IsDead");
        }
    }
}

반응형

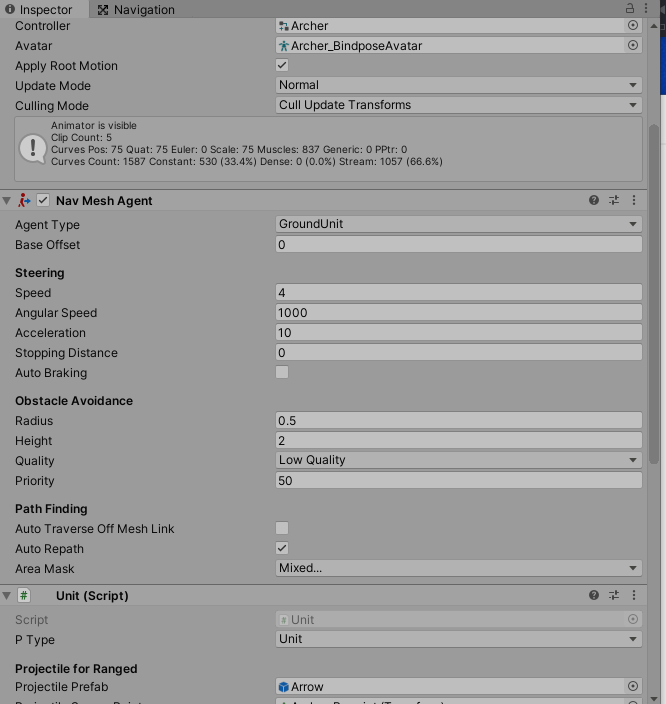

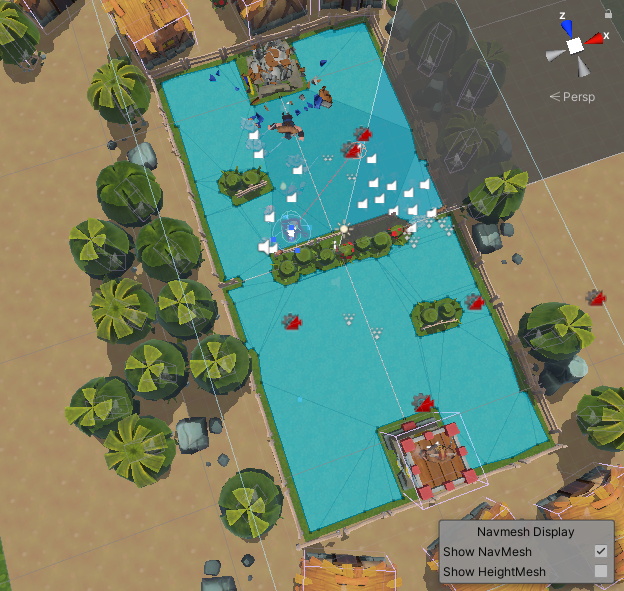

Navmesh Agent를 각 Unity Prefab이 포함되어있어서 타겟을 기준으로 길 찾기 및 타깃 이동을 처리가 된 것을 확인 가능했다.

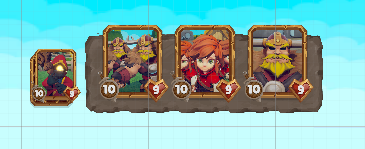

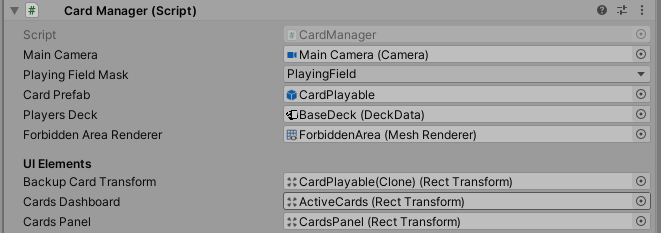

카드 매니져를 통해서 UI에 있는 카드를 컨트롤 구성되어있다.

namespace UnityRoyale
{
    public class CardManager : MonoBehaviour
    {
        public Camera mainCamera; //public reference
        public LayerMask playingFieldMask;
        public GameObject cardPrefab;
        public DeckData playersDeck;
		public MeshRenderer forbiddenAreaRenderer;

        public UnityAction<CardData, Vector3, Placeable.Faction> OnCardUsed;

        [Header("UI Elements")]
        public RectTransform backupCardTransform; //the smaller card that sits in the deck
        public RectTransform cardsDashboard; //the UI panel that contains the actual playable cards
        public RectTransform cardsPanel; //the UI panel that contains all cards, the deck, and the dashboard (center aligned)

        private Card[] cards;
        private bool cardIsActive = false; //when true, a card is being dragged over the play field
        private GameObject previewHolder;
        private Vector3 inputCreationOffset = new Vector3(0f, 0f, 1f); //offsets the creation of units so that they are not under the player's finger

        private void Awake()
        {
            previewHolder = new GameObject("PreviewHolder");
            cards = new Card[3]; //3 is the length of the dashboard
        }

        public void LoadDeck()
        {
            DeckLoader newDeckLoaderComp = gameObject.AddComponent<DeckLoader>();
            newDeckLoaderComp.OnDeckLoaded += DeckLoaded;
            newDeckLoaderComp.LoadDeck(playersDeck);
        }

        //...

		private void DeckLoaded()
		{
            Debug.Log("Player's deck loaded");

            //setup initial cards
            StartCoroutine(AddCardToDeck(.1f));
            for(int i=0; i<cards.Length; i++)
            {
                StartCoroutine(PromoteCardFromDeck(i, .4f + i));
                StartCoroutine(AddCardToDeck(.8f + i));
            }
		}

        //moves the preview card from the deck to the active card dashboard
        private IEnumerator PromoteCardFromDeck(int position, float delay = 0f)
        {
            yield return new WaitForSeconds(delay);

            backupCardTransform.SetParent(cardsDashboard, true);
            //move and scale into position
            backupCardTransform.DOAnchorPos(new Vector2(210f * (position+1) + 20f, 0f),
                                            .2f + (.05f*position)).SetEase(Ease.OutQuad);
            backupCardTransform.localScale = Vector3.one;

            //store a reference to the Card component in the array
            Card cardScript = backupCardTransform.GetComponent<Card>();
            cardScript.cardId = position;
            cards[position] = cardScript;

            //setup listeners on Card events
            cardScript.OnTapDownAction += CardTapped;
            cardScript.OnDragAction += CardDragged;
            cardScript.OnTapReleaseAction += CardReleased;
        }

        //adds a new card to the deck on the left, ready to be used
        private IEnumerator AddCardToDeck(float delay = 0f) //TODO: pass in the CardData dynamically
        {
            yield return new WaitForSeconds(delay);

            //create new card
            backupCardTransform = Instantiate<GameObject>(cardPrefab, cardsPanel).GetComponent<RectTransform>();
            backupCardTransform.localScale = Vector3.one * 0.7f;

            //send it to the bottom left corner
            backupCardTransform.anchoredPosition = new Vector2(180f, -300f);
            backupCardTransform.DOAnchorPos(new Vector2(180f, 0f), .2f).SetEase(Ease.OutQuad);

            //populate CardData on the Card script
            Card cardScript = backupCardTransform.GetComponent<Card>();
            cardScript.InitialiseWithData(playersDeck.GetNextCardFromDeck());
        }

        private void CardTapped(int cardId)
        {
            cards[cardId].GetComponent<RectTransform>().SetAsLastSibling();
			forbiddenAreaRenderer.enabled = true;
        }

        private void CardDragged(int cardId, Vector2 dragAmount)
        {
            cards[cardId].transform.Translate(dragAmount);

            //raycasting to check if the card is on the play field
            RaycastHit hit;
            Ray ray = mainCamera.ScreenPointToRay(Input.mousePosition);

            bool planeHit = Physics.Raycast(ray, out hit, Mathf.Infinity, playingFieldMask);

            if(planeHit)
            {
                if(!cardIsActive)
                {
                    cardIsActive = true;
                    previewHolder.transform.position = hit.point;
                    cards[cardId].ChangeActiveState(true); //hide card

                    //retrieve arrays from the CardData
                    PlaceableData[] dataToSpawn = cards[cardId].cardData.placeablesData;
                    Vector3[] offsets = cards[cardId].cardData.relativeOffsets;

                    //spawn all the preview Placeables and parent them to the cardPreview
                    for(int i=0; i<dataToSpawn.Length; i++)
                    {
                        GameObject newPlaceable = GameObject.Instantiate<GameObject>(dataToSpawn[i].associatedPrefab,
                                                                                    hit.point + offsets[i] + inputCreationOffset,
                                                                                    Quaternion.identity,
                                                                                    previewHolder.transform);
                    }
                }
                else
                {
                    //temporary copy has been created, we move it along with the cursor
                    previewHolder.transform.position = hit.point;
                }
            }
            else
            {
                if(cardIsActive)
                {
                    cardIsActive = false;
                    cards[cardId].ChangeActiveState(false); //show card

                    ClearPreviewObjects();
                }
            }
        }

        private void CardReleased(int cardId)
        {
            //raycasting to check if the card is on the play field
            RaycastHit hit;
            Ray ray = mainCamera.ScreenPointToRay(Input.mousePosition);

            if (Physics.Raycast(ray, out hit, Mathf.Infinity, playingFieldMask))
            {
                if(OnCardUsed != null)
                    OnCardUsed(cards[cardId].cardData, hit.point + inputCreationOffset, Placeable.Faction.Player); //GameManager picks this up to spawn the actual Placeable

                ClearPreviewObjects();
                Destroy(cards[cardId].gameObject); //remove the card itself

                StartCoroutine(PromoteCardFromDeck(cardId, .2f));
                StartCoroutine(AddCardToDeck(.6f));
            }
            else
            {
                cards[cardId].GetComponent<RectTransform>().DOAnchorPos(new Vector2(220f * (cardId+1), 0f),
                                                                        .2f).SetEase(Ease.OutQuad);
            }

			forbiddenAreaRenderer.enabled = false;
        }

        //happens when the card is put down on the playing field, and while dragging (when moving out of the play field)
        private void ClearPreviewObjects()
        {
            //destroy all the preview Placeables
            for(int i=0; i<previewHolder.transform.childCount; i++)
            {
                Destroy(previewHolder.transform.GetChild(i).gameObject);
            }
        }
    }

}

반응형



Card Class는 다음과 같다. 심플하게 카드의 데이터의 데이터와 Input( touch , drag, down)에 대한 기능이 구현되어 있다.

namespace UnityRoyale
{
    public class Card : MonoBehaviour, IDragHandler, IPointerUpHandler, IPointerDownHandler
    {
        public UnityAction<int, Vector2> OnDragAction;
        public UnityAction<int> OnTapDownAction, OnTapReleaseAction;

        [HideInInspector] public int cardId;
        [HideInInspector] public CardData cardData;

        public Image portraitImage; //Inspector-set reference
        private CanvasGroup canvasGroup;

        private void Awake()
        {
            canvasGroup = GetComponent<CanvasGroup>();
        }

        //called by CardManager, it feeds CardData so this card can display the placeable's portrait
        public void InitialiseWithData(CardData cData)
        {
            cardData = cData;
            portraitImage.sprite = cardData.cardImage;
        }

        public void OnPointerDown(PointerEventData pointerEvent)
        {
            if(OnTapDownAction != null)
                OnTapDownAction(cardId);
        }

        public void OnDrag(PointerEventData pointerEvent)
        {
            if(OnDragAction != null)
                OnDragAction(cardId, pointerEvent.delta);
        }

        public void OnPointerUp(PointerEventData pointerEvent)
        {
            if(OnTapReleaseAction != null)
                OnTapReleaseAction(cardId);
        }

        public void ChangeActiveState(bool isActive)
        {
            canvasGroup.alpha = (isActive) ? .05f : 1f;
        }
    }
}

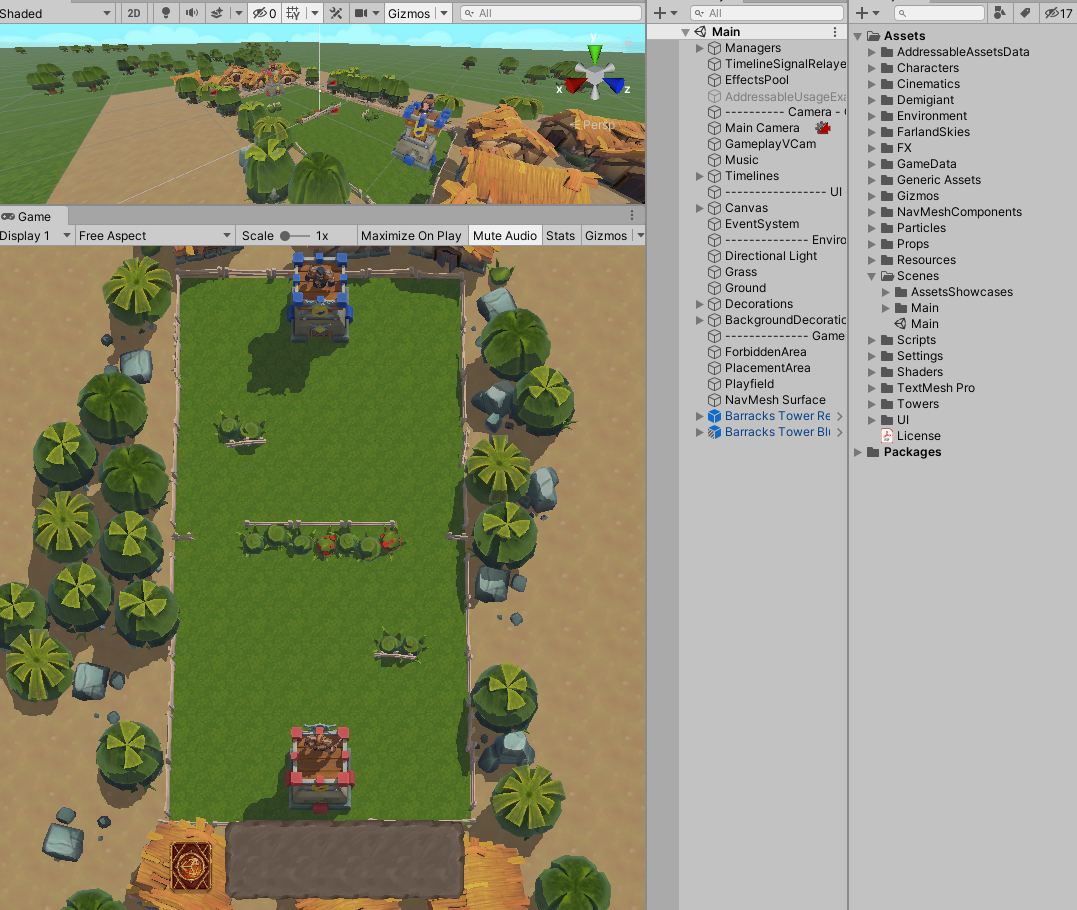

처음 카메라워킹은 Unity의 기능인 Cinemachine을 사용해서 처리한듯하다.

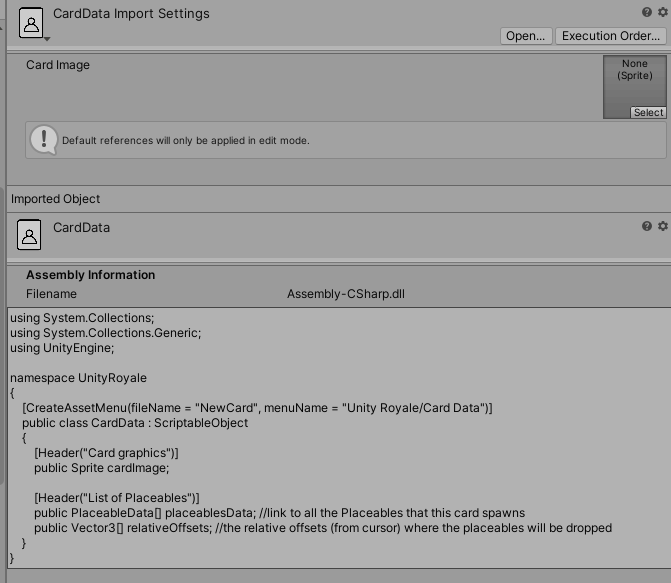

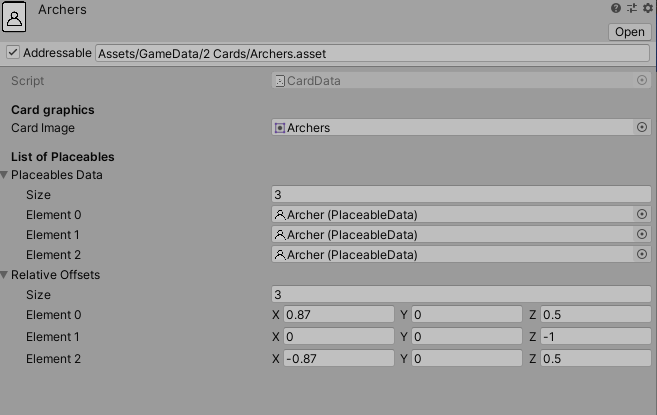

각 유닛의 데이터는 Addressable와 ScriptableObjects을 통해서 데이터를 구성했다. (에셋 번들 같은 것이라고 생각하면 된다.)

상대 CPU 플레이어는 카드를 특정기준마다 랜덤으로 선택해서 내도록 구성되어있다.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Events;

namespace UnityRoyale
{
    public class CPUOpponent : MonoBehaviour
    {
        public DeckData aiDeck;
        public UnityAction<CardData, Vector3, Placeable.Faction> OnCardUsed;

        private bool act = false;
        private Coroutine actingCoroutine;

		public float opponentLoopTime = 5f;

        public void LoadDeck()
        {
            DeckLoader newDeckLoaderComp = gameObject.AddComponent<DeckLoader>();
            newDeckLoaderComp.OnDeckLoaded += DeckLoaded;
            newDeckLoaderComp.LoadDeck(aiDeck);
        }

        //...

		private void DeckLoaded()
		{
			Debug.Log("AI deck loaded");

			//StartActing();
        }

		public void StartActing()
		{
			Invoke("Bridge", 0f);
		}

        private void Bridge()
        {
            act = true;
            actingCoroutine = StartCoroutine(CreateRandomCards());
        }

        public void StopActing()
        {
            act = false;
            StopCoroutine(actingCoroutine);
        }

        //TODO: create a proper AI
		private IEnumerator CreateRandomCards()
		{
            while(act)
            {
			    yield return new WaitForSeconds(opponentLoopTime);


                if(OnCardUsed != null)
				{
					Vector3 newPos = new Vector3(Random.Range(-5f, 5f), 0f, Random.Range(3f, 8.5f));
                    OnCardUsed(aiDeck.GetNextCardFromDeck(), newPos, Placeable.Faction.Opponent);
				}
            }
		}
	}
}

★★★☆☆
